Common Functionality User Guide
Query : User Status
User Status

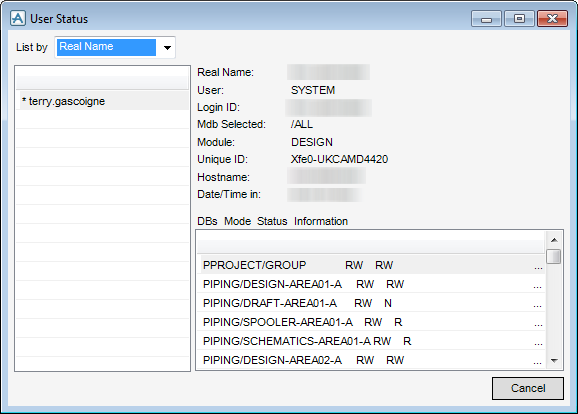

The User Status window displays information about the user sessions currently in the project. On the Tools tab, in the Project Query group, click User Status to display the User Status window.
The following information is displayed on the right-hand side of the window.
•
Real Name (the window user name).
•
User (the AVEVA E3D™ user name).
•
Login ID (window login alias).
•
MDB Selected (currently selected project MDB).
•
Module (current running software module).
•
AVEVA E3D™ ID (the ID of the process in which AVEVA E3D™ is running).
•
Host name (the COMPUTERNAME, set when Windows is installed).
•
Date/Time In.
The user can select each item individually from the List by drop-down menu. The scrolling list at bottom right has three columns.
•
DBs (list of databases in the current MDB).
•
Mode (shows the access rights of the User selected).
•
Status (shows the way the User is accessing the database.
Click Cancel to close the User Status window.
