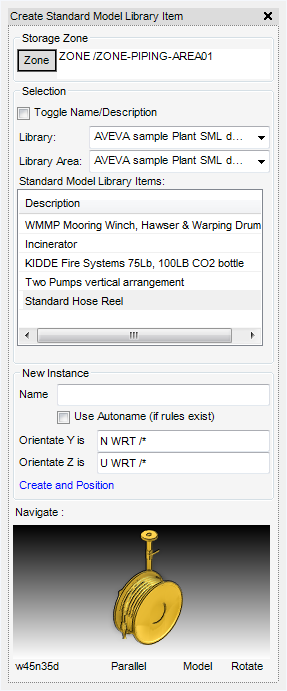

On the Home tab, in the Create group, click Standard Model to display the Standard Model Library Item window.

The Create Standard Model Library Item window, has common functionality with the creation of libraries and areas with the exception of the New Instance pane of the window. Refer to Standard Model Library for further information.

From the New Instance pane of the window, the user can enter a name in the Name field or select the Autoname check box.

The Create and Position link creates a copy of the standard model library element in the specified zone. Positioning is carried out by EDG using the origin position of the selected standard model library item with the new orientation within the new zone.
