Zone

Common Functionality User Guide

Create : Zone

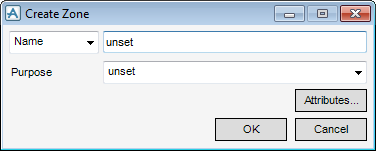

To create a new Zone the user must first create a Site or have an existing Site selected as CE. On the Home tab, in the Create group, click Zone to display the Create Zone window.


Name	To name the new element explicitly, select Name from the drop-down menu and enter a name in the text box. If autonaming rules have been set up by the system administrator, the element can be named automatically using the appropriate naming rules for its type. Select Autoname from the drop-down menu.
Purpose	If purposes have been set up by the system administrator, and the user wants to allocate a purpose to the element, select one from the drop-down menu.

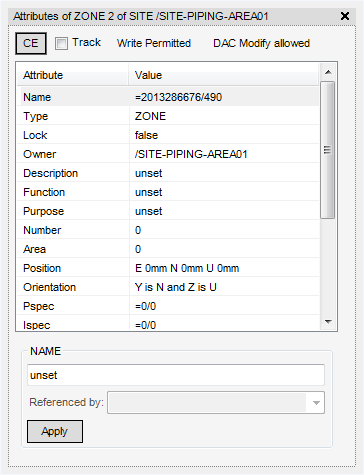

Attributes	To view the current attribute settings, some of which have been cascaded down from the new element's owner, click Attributes. to display the Attributes window.

	Click CE to display the current element attributes. Select Track check box, the listed attributes is updated as different elements are selected in the Explorer or in the 3D display. To change any of these settings, click on the corresponding line in the list to display specific settings at the bottom of the window from which the user can edit the setting.

Click OK to create the site or Cancel to discard.
