Common Functionality User Guide

Display : Explorers : System Explorer
The System Explorer can be used to navigate in the System Hierarchy in the database. If the System Explorer is not visible, on the Home tab, in the Navigate group, click System to display the System Explorer window.

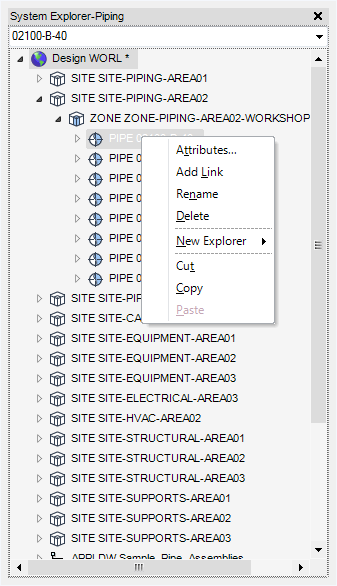

The user can right click in the Systems Explorer window empty space area to display a Filter drop-down menu with predefined filters, which can be applied to the explorer tree. Currently there are three filters available one for each discipline (Piping, HVAC, Electrical).
The System Explorer features a context sensitive right-click menu that provides common commands.
Note:
The System Explorer displays the entire contents of the database and not only the current drawing. Some administrative elements such as the SYSCDA and SYSMDA are however hidden in order not to clutter the view. These elements can be seen and manipulated through the systems hierarchy administration function.
