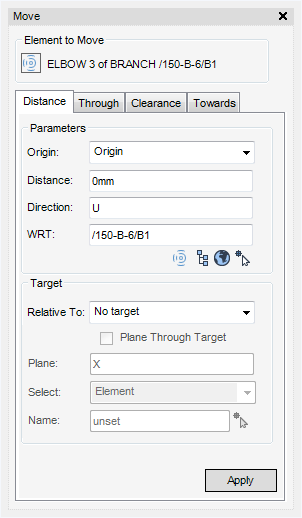

On the Home tab, in the Common group, click Position Relatively By, select Move from the drop-down list to display the Move window.

The Move window allows the user to move the Current Element (CE) in a given direction. CE can be moved by a given distance in that direction or it can be moved to a position relative to another element or relative to a plane through a given position.

To move an element so that its origin moves in a specified direction and distance. Refer to Distance for further information.

To move an element so that its origin or a P-point moves in a specified direction until it lies on a plane perpendicular to the direction moved. The plane is defined relative to a reference point. Refer to Through for further information.

To move an element so that its obstruction volume or P-point is a given clearance from another element. Refer to Clearance for further information.

To move an element a specified distance in a direction relative to a reference element. Refer to Towards for further information.

In the Move window the Equipment To Move pane allows the user to click CE to select an element to move.
