Cable : Cable Data

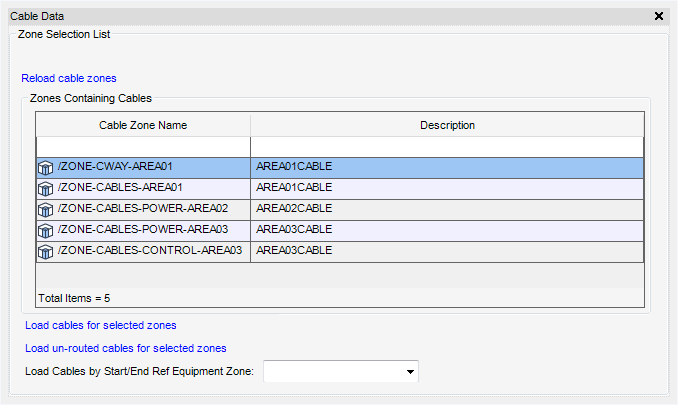

Clicking Reload cable zones populates the Zones Containing Cables list with all the zones containing cables. Right-clicking in the list displays a pop-up menu with two options.
Both options are the same as those available directly on the Cable Data window.
The user can select from the Load Cables by Start/End Ref Equipment Zone drop-down list which zone should be used to load the cables into the Cable list.
Selecting a Cable Zone Name from the list and clicking either Load cables for selected zones or Load un-routed cables for selected zones, re-displays the Cable Data window with a populated Cable List.

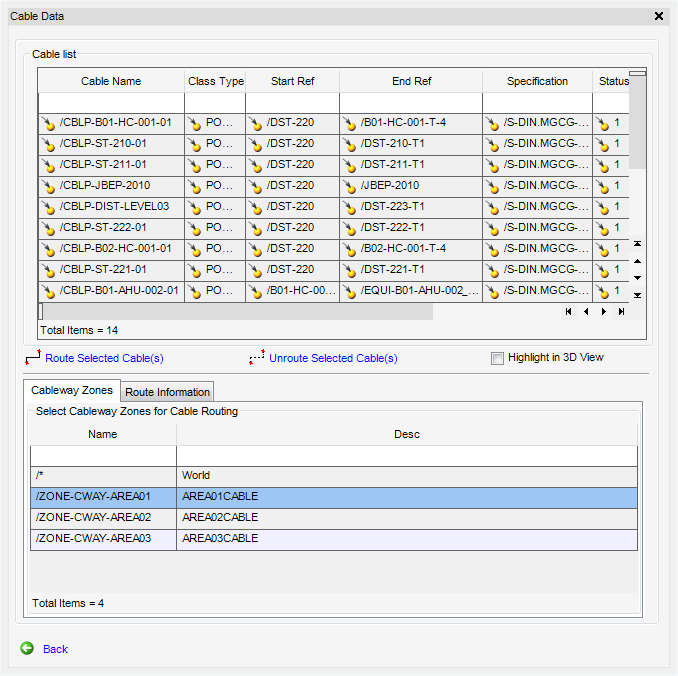

To route a cable(s), select the required cable(s) in the Cable List, select the cableway zones from the Cableway Zone Name list and click Route Selected Cable(s). Routed cables can be un-routed by selecting the required cable(s) in the Cable List and clicking Unroute Selected Cable(s).
Checking the Highlight in 3D View check box, will highlight the selected cables in the 3D graphical view.
|
Opens the List of Cables window.
|
|

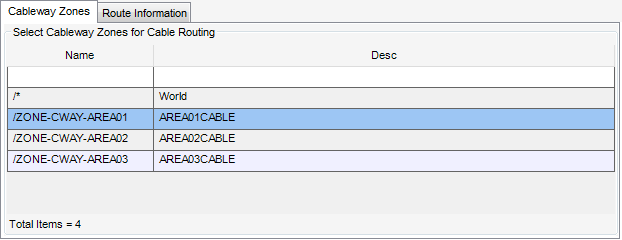

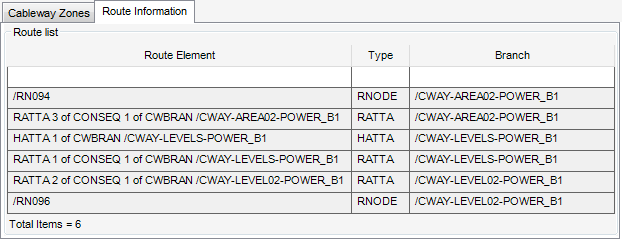

The Cableway Zones tab lists the zones containing cableways available for routing cables, right click on a zone to Navigate To the selected zone in the hierarchy.
