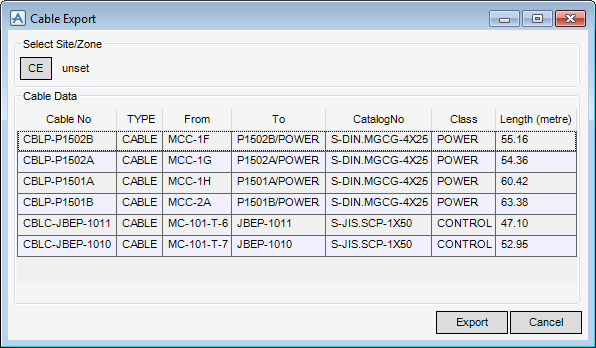

The Export Cables utility allows the user to export cable reference set data to an Excel spreadsheet. On the Cabling System tab, in the Data group, click Export to display the Cable Export window.

Select the cables to be exported in the Model Explorer and click CE on the Cable Export window.

Click Export to display a Save As dialog window which allows the user to name the export file and navigate to a required location.

Click Cancel to close the Cable Export window.
