List of Cables

Click List Associated Cables to display the List of Cables window.

Note:

The List of Cables window can also be displayed by, the Cabling System tab, in the Tools group, clicking List Cables.

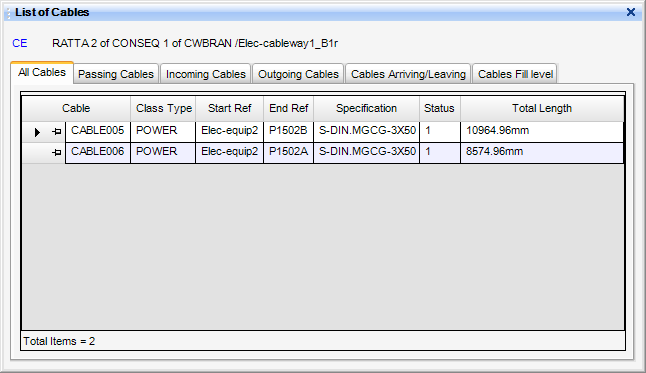

The List of Cables form displays cables associated with the current cableway branch. The All Cables tab lists all the associated cables, Cable Passing tab lists all the cables that pass through current cableway branch and Cables Arriving/Leaving tab lists all cables that arrive to and leave from the current cableway branch. Information is also given on the Cable, the Class Type, Start Ref, End Ref, Specification, Status and Total Length of each cable.

The user can click CE (Current Element) to view the selected cable in the hierarchy and a description of the current element.

Right click on a cable to display a popup menu with the following options:


Navigate	Navigates to the selected cable in the explorer.
Highlight	Highlights the selected cable(s) in the graphical view.
Unhighlight	Removes the highlight from the cable(s) in the graphical view.
3D View	Allows the user to:
	Add Cable	Adds the associated cable to the 3D view.
	Add Connected	Adds the connection to the associated cable in the 3D view.
	Remove Cable	Removes the associated cable from the 3D view.
	Remove Connected	Removes the connection of the associated cable from the 3D view.
Export to Excel	Export the grid data to Excel.
Print Preview	Opens the Print Preview window.
Modify Cable	Open the Modify Cable window.
