Fill Level Check

Cable Design User Guide

Cableway Branch : Fill Level Check

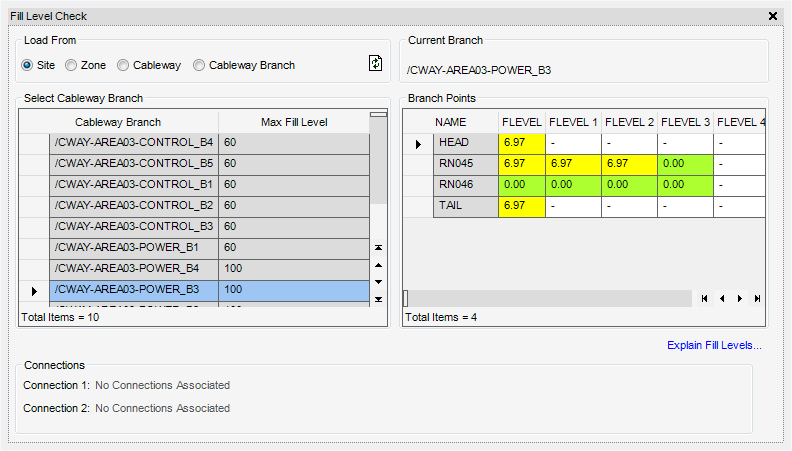

To check the fill levels, on the Cabling System tab, in the Tools group, click Fill Level Check to display the Fill Level Check window.

When the Fill Level Check window is first displayed it checks to see what the current element is and displays this information.

Load From contains four radio buttons, Site, Zone, Cableway and Cableway Branch and a refresh grid function. Selecting a radio button allows the user to choose what to display in the Select Cableway Branch grid. The grid displays the name of the Cableway Branch and also the Max Fill Level for that branch.

Right-clicking within the grid displays a menu with two options:


Navigate to	Allows the user to navigate to the selected cableway branch in the Model Explorer
Highlight	Highlights the selected cableway branch in the 3D Graphical View

The branch selected in the Select Cableway Branch list is displayed in the Current Branch pane and its branch point elements are displayed in the Branch Points list. The elements are ordered from HEAD to TAIL and display the fill levels for each branch point.

The colours on each individual cell correspond to the value entered in the Fill Check Utility Allowance field on the Defaults window.


Green	If a cell is coloured green, then the maximum fill of the branch is greater than the fill level.
Yellow	If a cell is coloured yellow, then the fill level of the branch point is within the fill check allowance to the maximum fill of the cableway branch.
Red	If a cell is coloured red, then the fill level of the branch exceeds the maximum fill of the cableway branch.

Right-clicking within a cell displays a menu with three options:


Navigate to	Allows the user to navigate to the selected branch point in the Model Explorer.
List of Cables	Displays the List of Cables window with the selected branch point.
Export to Excel	Allows the user to export the grid to Excel

When a branch point is selected from the grid, graphical aids are displayed in the 3D Graphical View with the correct tag and position of the selected branch point.

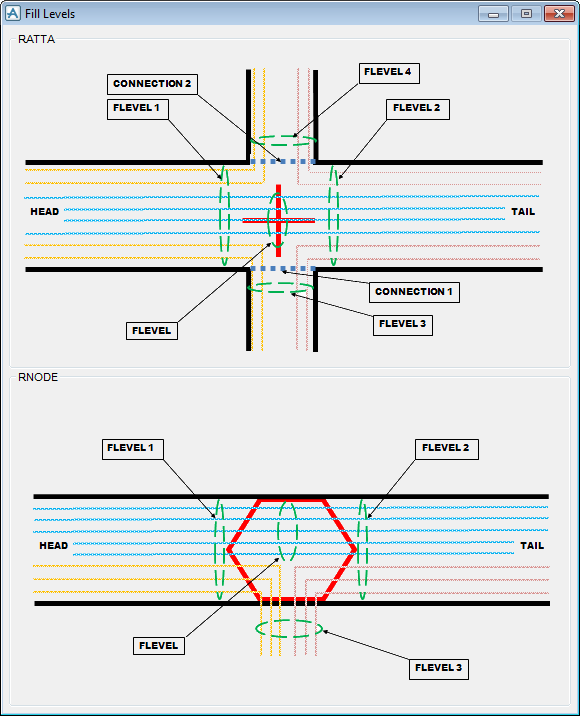

To view an explanation of fill levels, click Explain Fill Levels to display the Fill Levels window.

The Connections pane displays if a branch point has a valid connection or not. Any valid connections are displayed, but if there is no valid connection, No Connections Associated is displayed.

Clicking a valid connection will navigate the user to that element in the Model Explorer and re-display the window to show the correct Cableway Branch selected and the branch point.

Note:

If current element is a RATTA, RNODE, HATTA or TATTA when the window is first initialised the branch point is automatically selected.
