Cableway Branch : Split Cableway Branches
Split Cableway Branches
It may be necessary to split cableway branch(es) as a result of a project requirement or so that the cabling system can be viewed more clearly. Cableway branch(es) can be split at a specified point chosen by the user (by default) or on a plane. Dependent upon how the cableway branch will be spilt, will dictate how the window is displayed.

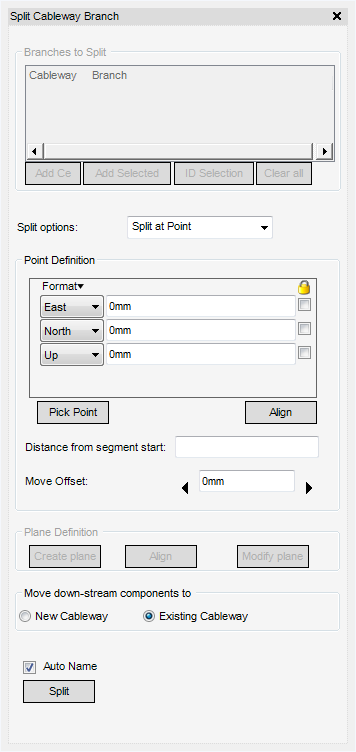

All the tasks that a user would carry out that are associated with the splitting of cableway branch(es) are initiated from a central Split Cableway Branch window which acts as a task hub.
On the Cabling System tab, in the Tools group, click Branch, select Split from the list to display the Split Cableway Branch window.
