Modify Cable Section

Cable Design User Guide

Cableway Branch : Modify Cable Section

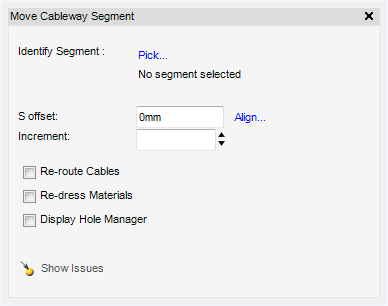

The user must identify the Cableway Segment to be moved, by clicking Pick. The user is prompted to Pick on the segment to be moved in the 3D view.

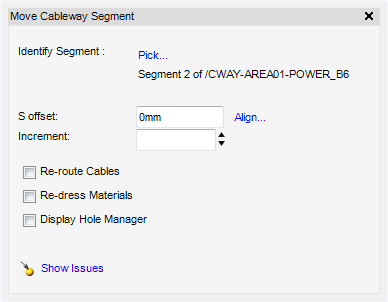

The name of the Identified Segment and the allowed Offset direction is displayed in the Move Cableway Segment window.

Alternatively, select Align, the user is prompted to Pick to define position. The user must pick a position to align to in the graphic view.


Re-route Cables	Cables are re-routed automatically.
Re-dress Materials	Cableway is re-dressed automatically.
Display Hole Manager	Displays Hole Manager window.

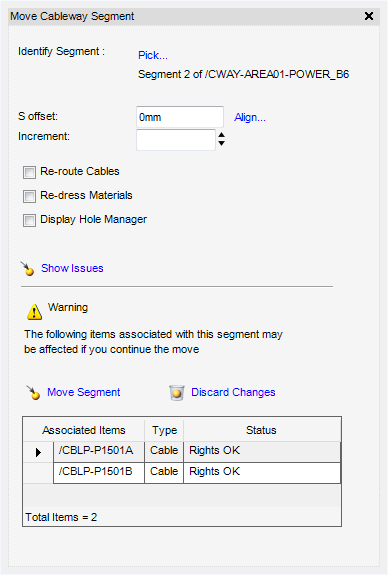

To display any issues which arise as a result of the move, click Show Issues to warn the user that the segment has associated items which may be affected by the move.

The Associated Items (all route attachment points), Type and Status of the selected segment are displayed.

Click Move Segment to move the selected segment to the new location.

Click Discard Changes to discard any changes and close this part of the Move Cableway Segment window.

Right click on a Cable to display a popup menu which allows the user to:


Navigate	Navigates to the selected cable in the explorer.
Highlight	Highlights the selected cable in the graphical view.
Unhighlight	Removes the highlight from the cable in the graphical view.
3D View	Allows the user to:
	Add Cable	Adds the selected cable to the 3D view.
	Add Connected	Adds the connection to the selected cable in the 3D view.
	Remove Cable	Removes the selected cable from the 3D view.
	Remove Connected	Removes the connection of the selected cable from the 3D view.
Export to Excel	Exports the cable grid data to Excel.
Print Preview	Opens the Print Preview window.

Right click on a Branch to display a popup menu which allows the user to:


Navigate	Navigates to the selected branch in the explorer.
Highlight	Highlights the selected branch in the graphical view.
Unhighlight	Removes the highlight from the branch in the graphical view.
3D View	Allows the user to:
	Add Branch to the 3D view.
	Remove Branch from the 3D view.
Export to Excel	Exports the branch grid data to Excel.
Print Preview	Opens the Print Preview window.

Right click on a Rnode or Ratta to display a popup menu which allows the user to:


Navigate	Navigates to the selected Rnode or Ratta in the explorer.
Highlight	Highlights the selected Rnode or Ratta in the graphical view.
Unhighlight	Removes the highlight from the Rnode or Ratta in the graphical view.
Export to Excel	Exports the Rnode or Ratta grid data to Excel.
Print Preview	Opens the Print Preview window.
