Colour Mapping

Diagrams User Guide

Diagrams : Utilities : Gateway Mapping : Colour Mapping

Diagrams Gateway allows to manipulate the colour scheme of drawings by swapping colours. The section colours of the presentation mapping provides such functionality. Defining colour replacement is being done with the colour node. Each colour node contains two sub nodes:

from

Which defines the colour that will be changed. Colours can be defined in two ways:

Using R, G, B attributes, to define the exact value of the colour.

Using the name attribute to use colour alias used in the diagrams drawing.

Which defines the colour that will replace the colour defined in from node.

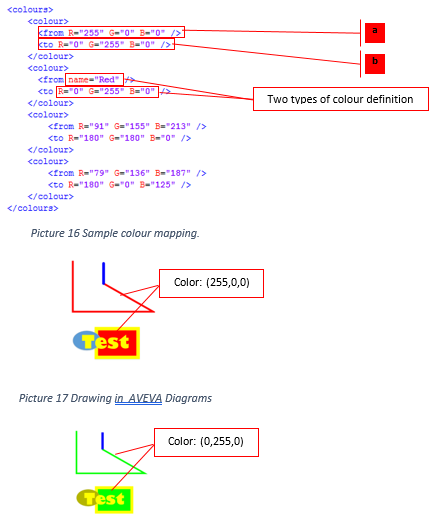

The example below shows typical usage of colour mapping.
