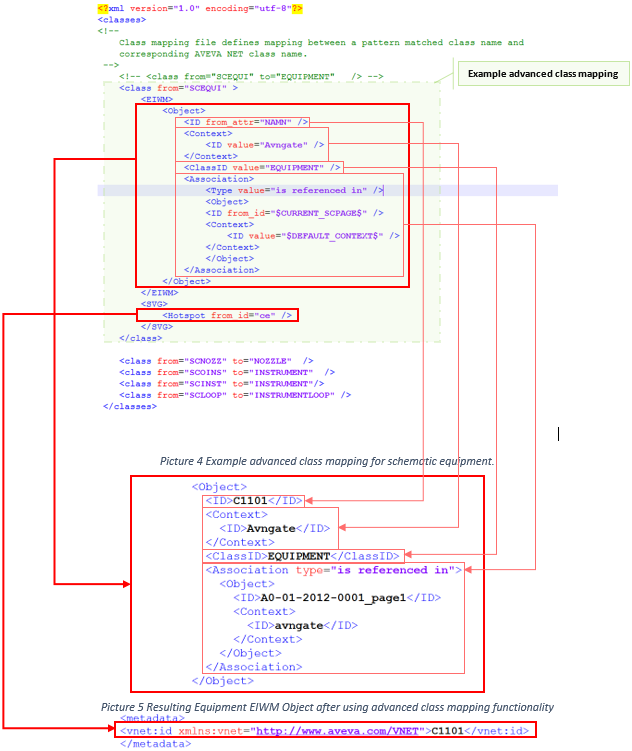

The following example shows usage of advanced class mapping functionality for schematic equipment class aligned with effects in resulting EIWM and SVG files after publishing.

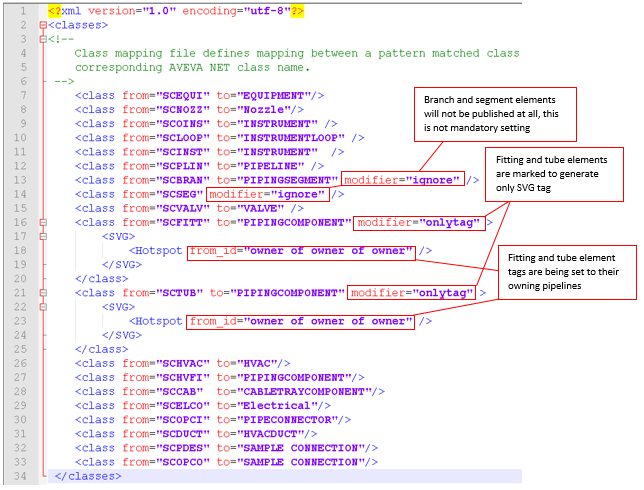

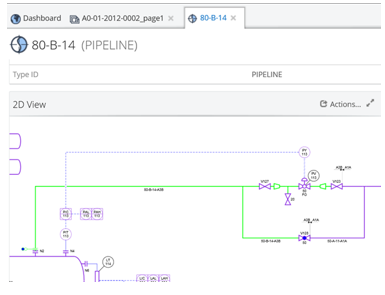

The following example will show how to override default behaviour of hot spotting branch elements to branch ID so the elements would be hot spotted to the owning pipeline:

In this example, class mapping is using PML expressions to get a specific result when publishing the data to EIWM:

Note:

The from_pml attribute expects that results of PML functions and expression will be returned as text (string). Using different return types may result in unexpected behaviour.
