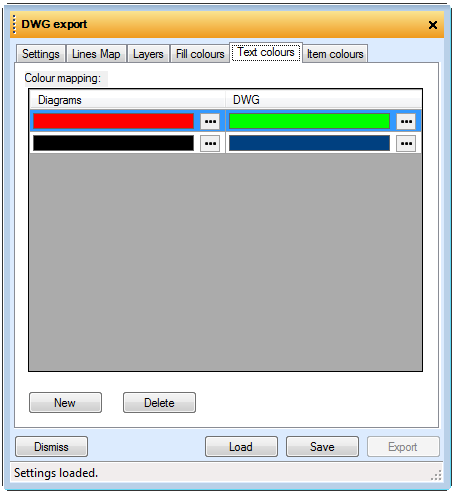

Text Colours Tab
Contains pairs of colours. The text colours from the
Diagrams
column will be converted to colours from the
DWG
column after export. I.e. all texts that are black in Diagrams will be blue in DWG.
Note:
Colour mapping might be omitted if colours from layers are used.
