DWG Export
:
User Interface
: Fill Colours Tab
Fill Colours Tab

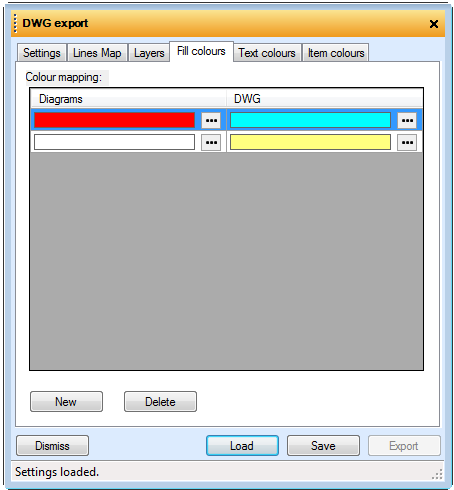

Contains pairs of colours. The fill colours from the
Diagrams
column will be converted to colours from the
DWG
column after export. I.e. all shapes that has a white fill in Diagrams will have yellow fill in DWG.
Note:
Colour mapping might be omitted if colours from layers are used.
