Batch Consistency Check

Diagrams User Guide

Diagrams : Utilities : Batch Job : Batch Consistency Check

The Consistency Check function will go through each of the selected diagrams and run a consistency check on them.

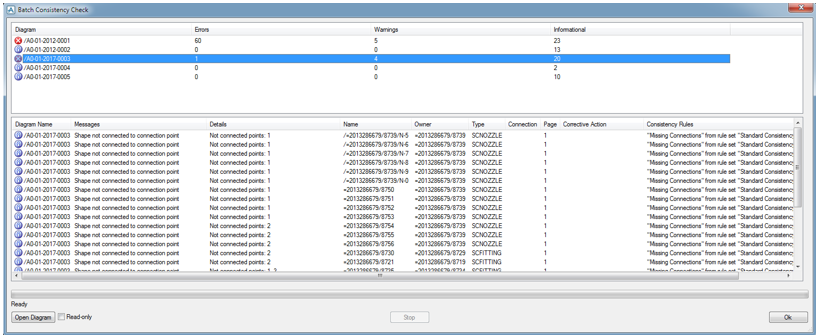

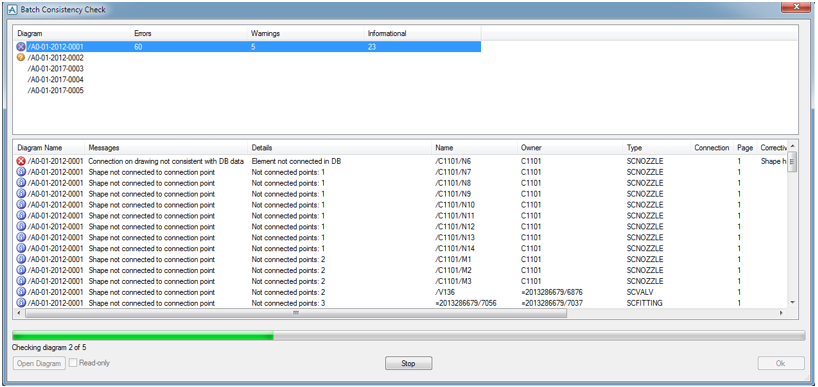

The result summary for each diagram is reported in the Errors, Warnings and Informational columns, as well as represented by the icon before the diagram name. The progress for each diagram can be seen in the Progress Bar as well as in the status text below it.

By using the Stop button, the Check function can be cancelled.

To check detailed information for each diagram select the diagram from the list that is displayed in the.Batch Print message log.

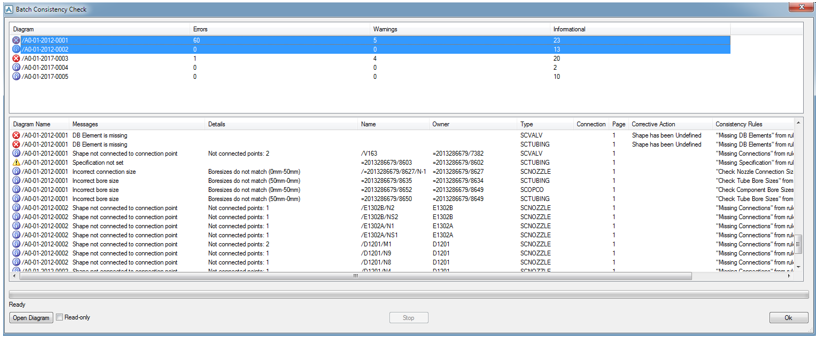

To check multiple diagrams at the same time select the diagrams you want to check and the detailed error messages will be displayed in the error log as shown below.

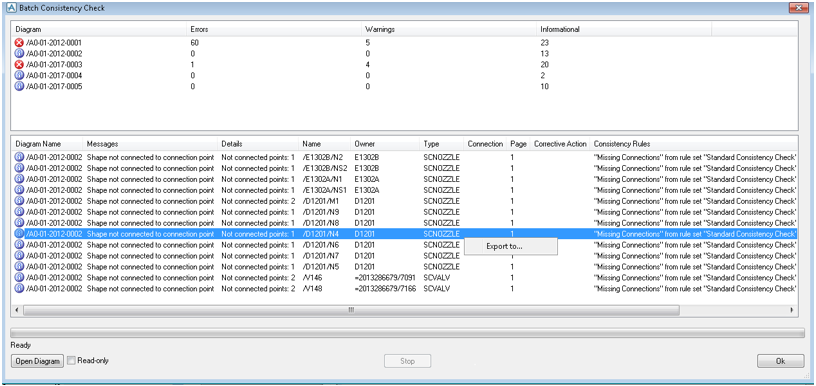

Another functionality allows the export of the Message Log and Consistency Check results to an xls/xlsx file. This is available in the right click context menu of the Message Log as shown below.
