Secondary Shapes

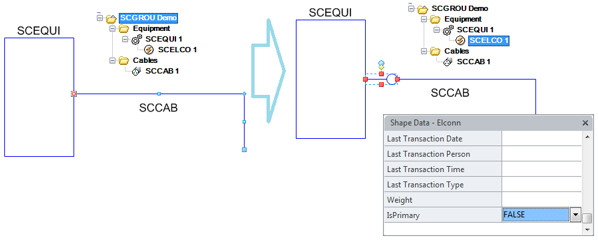

If an electrical connection already exists in the database and is connected, then only the Visio shape that represents the electrical connection will be added and will be linked to the existing SCELCON database element. The shape will be marked as secondary.
