Auto Create using Batch Job
You may update existing drawings by adding electrical connection symbols between cable/multi-cable and connected equipment/sub-equipment. To achieve this, you use the Batch Job functionality as shown below.

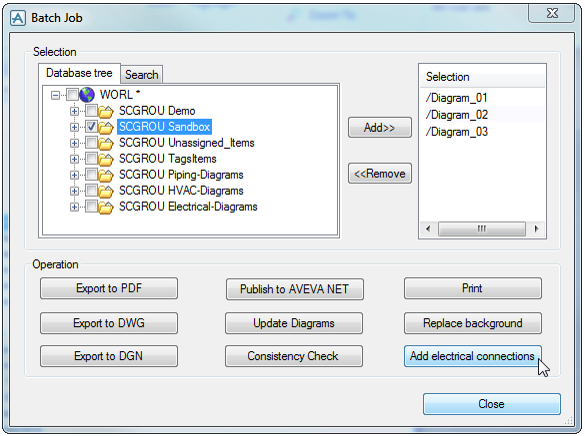

First you have to select the diagrams that should be updated, next click the Add electrical connections button. Each diagram will be opened and connections between the cable/multi-cable and the equipment/sub-equipment will be updated according to the below rules:

Connection types
Description
To element border

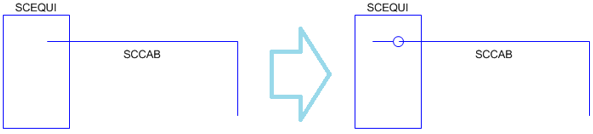

The electrical connection will be attached to the item as in the below picture. The connection will be attached to a point where the geometries of the cable and equipment are in contact.

Connection types
Description
To connection point inside item area

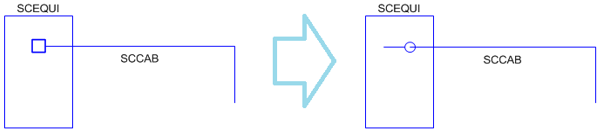

The electrical connection will be added to the group. If this is not possible, it will be attached to the connection point.
Note:
If the electrical connection box will be extended beyond its owner boundaries, then it will be attached to instead of added to the group.

Connection types
Description
To connection point outside item area

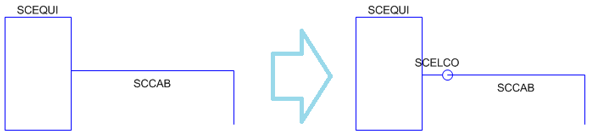

The electrical connection will be attached to the connection point.

Connection types
Description
Via nested symbol
The nested symbol will be replaced by an electrical connection shape.
After the update you can check the operation status by displaying the job log for any information, warnings and errors.
