Diagrams
User Guide
Lines Map contains pairs of Visio lines types and DWG line patterns that shows line type representation in DWG after export. Available DWG lines are defined in the Diagrams.lin file. A description of how to define DWG line patterns can be found in Creating Line Patterns below.
|
•
|

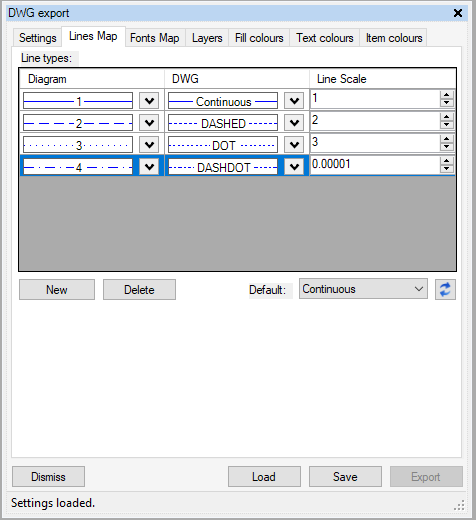

Line types table- table with corresponding lines patterns from Diagrams to DWG.
|
|
•
|
Line Scale - Line Scale is used to control the line type scaling factor of all displayed objects.The Line Scale will override the settings tab Line type scale.
|
|
•
|
New - add new rows to the map table.
|
|
•
|
Delete - delete selected rows from the map table.
|
|
•
|
Default - option to choose default DWG pattern.
|
|
•
|
Refresh - refreshes DWG patterns list. Refresh must be used every time the Diagrams.lin file is changed so that the DWG line patterns will be available in the lines map grid.
|
|
