Enable/Disable the Pipeline Specification Grid Option
Go to General Options > Pipe Dimensioning > Display Specification Grid.
Go to the Browse button in Home > Pipe > Create Pipeline > Specification > Pipespec.

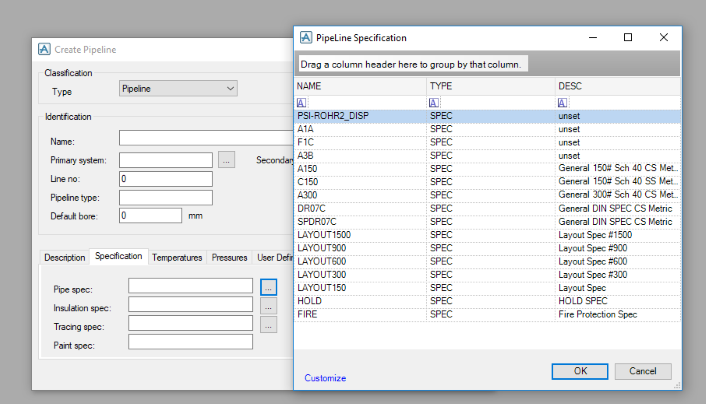

If this option is set to True a new window, Pipeline Specification, will be displayed.
By default this option is set to False.

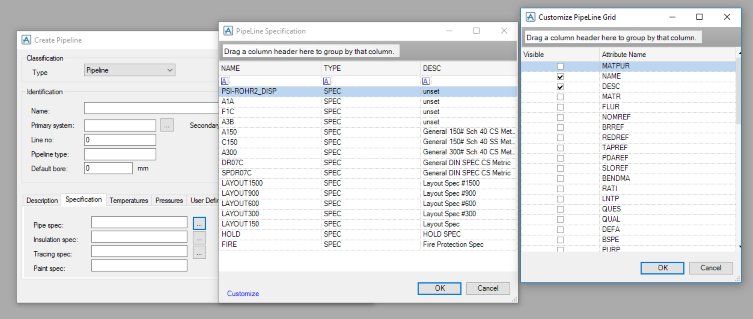

Click on Customize to open the Customize PipeLine Grid window.
